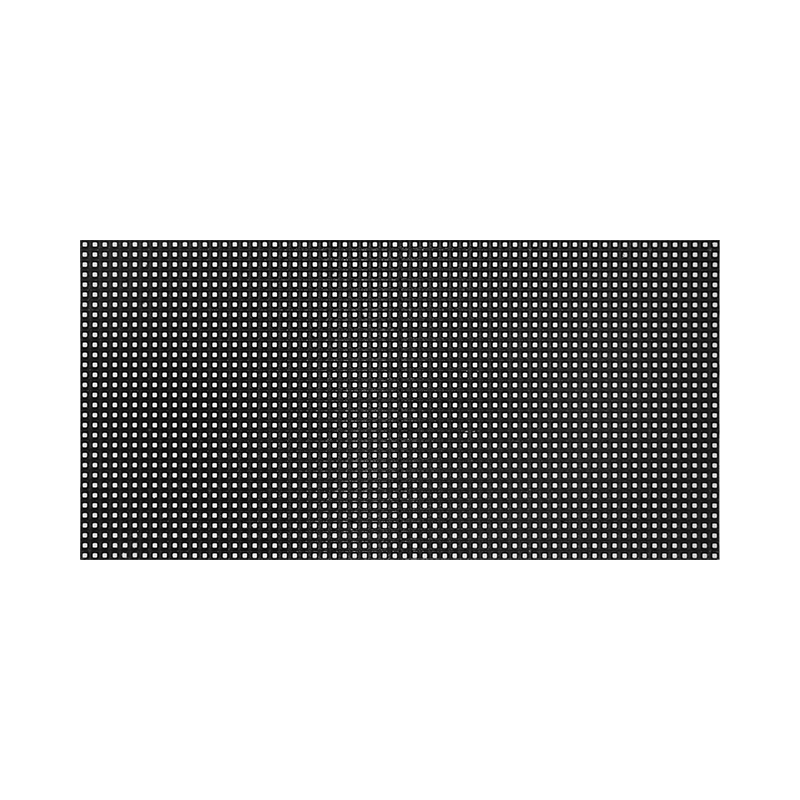

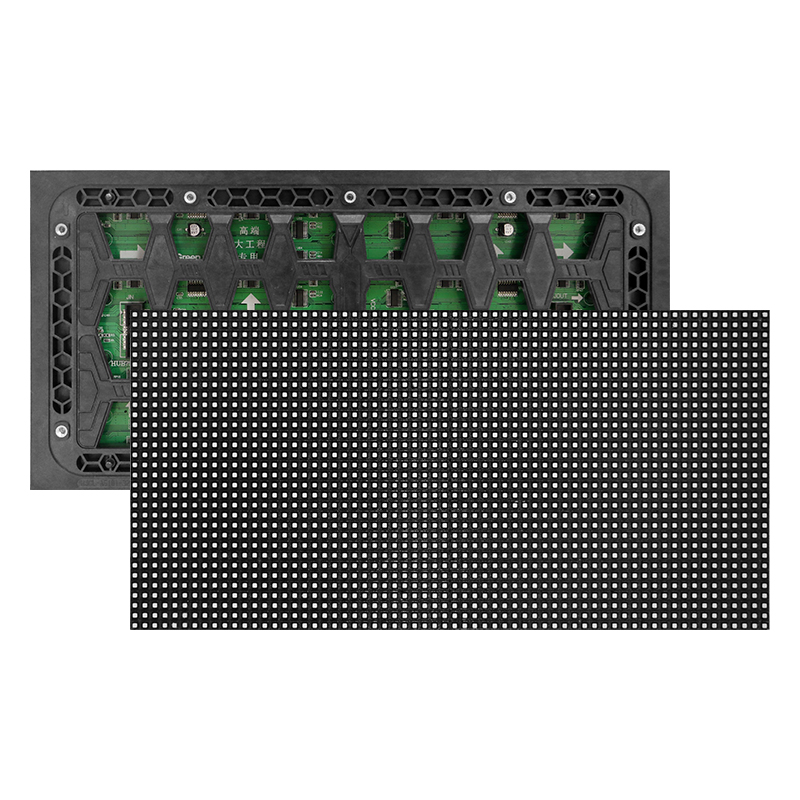

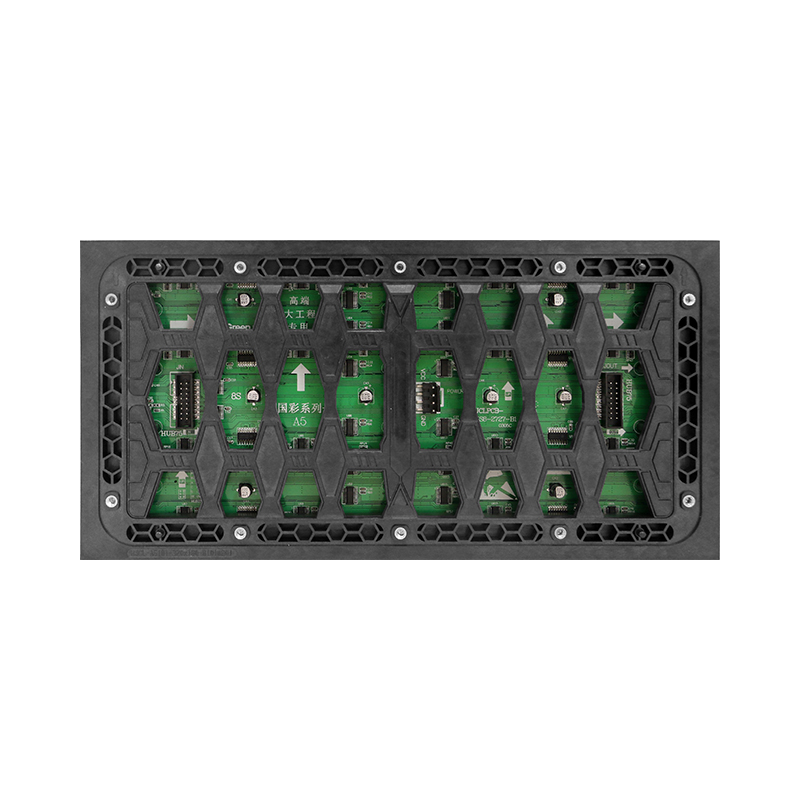

Xailn P5 High Quality Outdoor Advertising Tv Panel Large Stadium Sing Live Cricet Match SMD 2727 Full Color P5 Led Display Screen Module

$0.00

Wide applied in industry and commerce, post and telecommunications, sports, advertising, factories and mines, transportation, education systems, stations,airports, shopping malls, hospitals, hotels, banks, securities markets, construction markets, auction houses, industrial enterprise management and other public places .

With media display, information release, traffic guidance, creative display etc…

Compare
Category:
Name P5
Plate Size 320*160*24mm
Resolution 64*32
Pixels pitch 5mm.
Light color 1R 1G 1B
LED lamp SMD2727
Brightness ≥4500cd/sqm
Drive mode 1/8 scan,constant voltage
Pixel density 40000dots/sqm
Refresh rate ≥1920HZ
Failed Rate <0.0001
Best viewing distance ≥5m
MTBF 10000 hrs
Work life 100000hrs
System operating platforms WIN7\WINXP\WIN2000 etc.
Data communication RF/S-video/RGB/RGBHV/YUV/YC/COMPOSITION etc.
Control system PCTV card+DVI graphic card+control
Control mode Synchronous/Asynchronous
Max power consumption ≤878w/sqm
Maximum Current 8.7A±0.3A
Input Voltage(DC) 4.8-5.5v
Operating Environment Temperature -20℃~+50℃;Humidity, 10%~90%RH.
Working Voltage AC110V/220V ±10%
